Test speed, pretension, specimen preparation and conditioning follow the selected method. For ISO 2062, a 250 mm gauge length is used under the conditions permitted by the standard or by agreement between the parties; the corresponding basic test speed is 250 mm/min. Application suitability depends on specimen force, elongation and secure gripping.
CSSA-02 · PROWHITE
Portable Yarn & Splice Strength Tester
Product codeCSSA-02
Measure breaking force and elongation of parent yarns and spliced joints. Compare splice performance with the reference yarn and assess results directly on the production floor.
60 NForce capacity250 mmGauge length44%Maximum elongation
PRODUCT VISUALIZATION
Screen content is illustrative.
Screen content is illustrative.WORKING PRINCIPLE
Test at the machine. Evaluate on one screen.
Parent yarn and splice testing uses the constant rate of extension (CRE) principle. Automatic electromagnetic grips and adjustable automatic pretension support specimen loading. The 4.3-inch HMI displays breaking force and elongation; yarn count is entered for RKM calculation.
APPLICATIONSParent yarn, splice comparison and winding-unit assessment
INCLUDEDHMI, Ethernet, RS232 mini printer and PC software
TECHNICAL SPECIFICATIONS
CSSA-02
Force capacity60 N / 6,000 cN
Initial gauge length250 mm
Usable extension travel110 mm
Maximum elongation44% at 250 mm gauge length
Crosshead speedAdjustable up to 1,000 mm/min
Specimen gripsAutomatically closing electromagnetic grips
PretensionAdjustable, automatic
Control display4.3-inch touchscreen HMI
CommunicationEthernet port
PrinterIntegrated mini thermal printer, RS232 interface
Measurements & calculationsBreaking force, elongation, RKM, splice strength ratio
StatisticsMinimum, maximum, mean and CV%

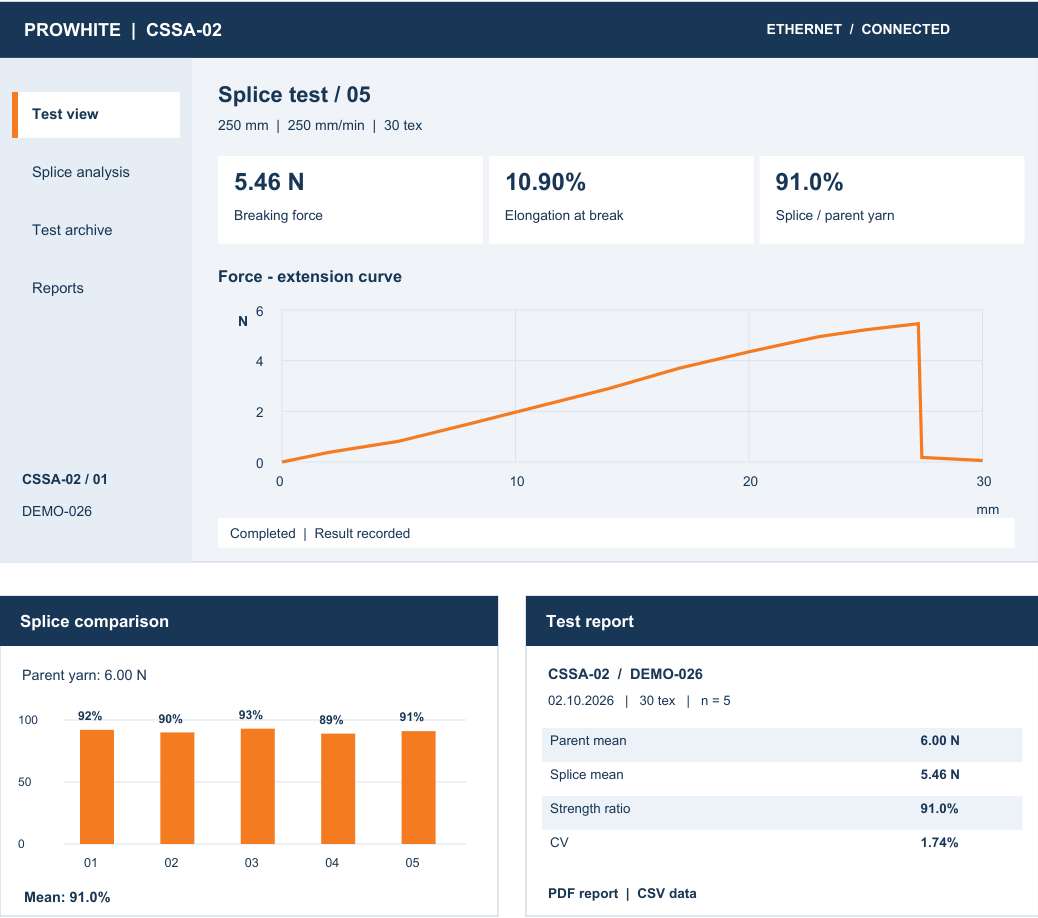

PC SOFTWARE
Monitor, compare and report.
Monitor test data over Ethernet with force-extension curves, breaking force and elongation. Compare splice strength against the parent reference using mean, minimum, maximum and CV%. Archive results with specimen and lot information; export PDF reports with graphs and statistics, plus CSV data.
REFERENCE TEST METHODS
ISO 2062 · ASTM D2256/D2256M
