PROWHITE · OPTIYARN · PW-OPT01

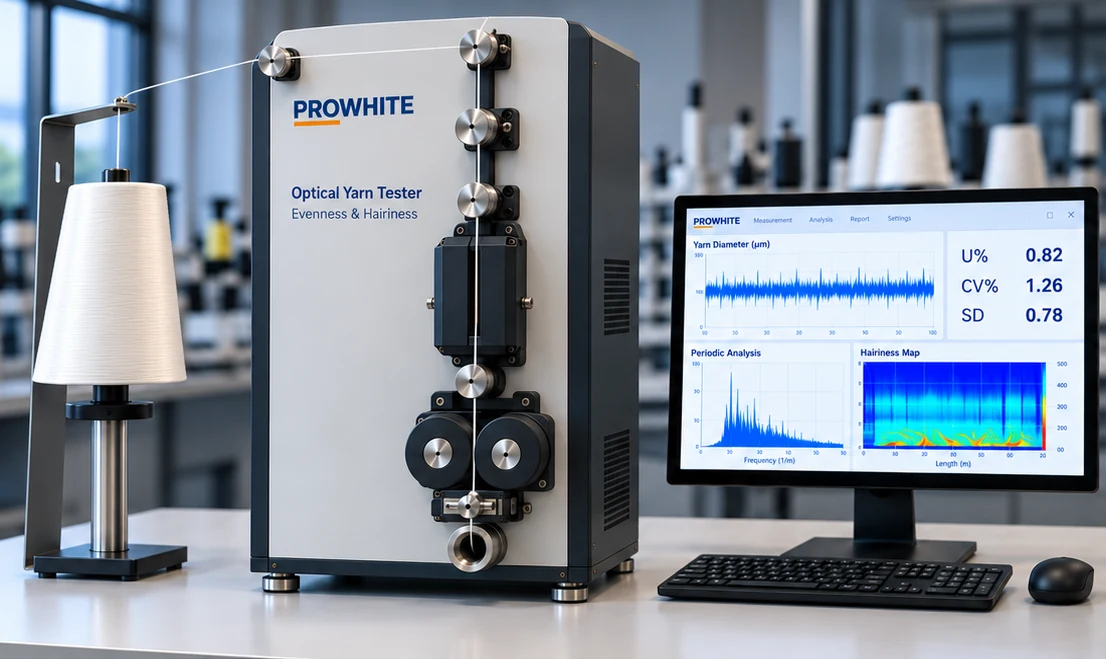

Optical Yarn Evenness & Hairiness Tester
Product codePW-OPT01
Optical yarn diameter, evenness, hairiness and filament anomaly analysis at 20–300 m/min with 0.5 mm spatial sampling. PC software with PDF/CSV output.
20–300 m/minMeasurement speed0.5 mmSampling intervalPDF / CSVReport / export

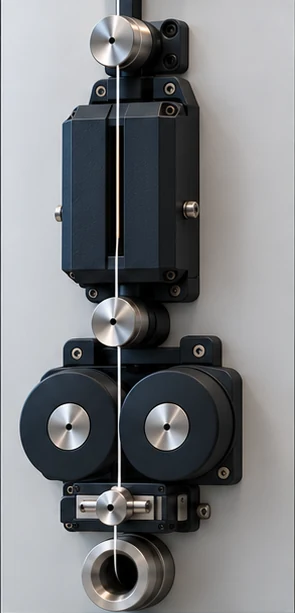

MEASUREMENT & ANALYSIS
See the yarn in detail
Evaluate yarn geometry and surface characteristics along the tested length. Compare results and investigate recurring variation in one PC-based workflow.
- Optical diameter & evenness
- Diameter variation evaluated with U%, CV% and SD from the optical diameter signal.
- Hairiness & filament anomalies
- Surface quality assessment through protruding fibre and filament irregularity analysis.
- Spectrogram & periodic analysis
- Graphical evaluation of recurring yarn variation along the tested length.

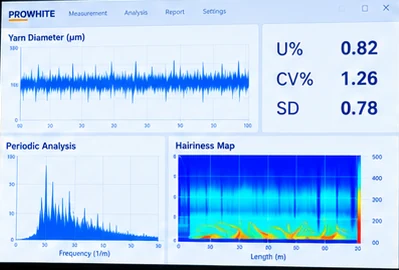

FROM SIGNAL TO INSIGHT
Review, compare and report
Review statistical results, spectrograms and surface anomalies in external PC software. Create PDF test reports and export analysis data as CSV.
PW-OPT01
Technical specification
| Measurement speed | 20–300 m/min |
|---|---|
| Sampling interval | 0.5 mm along the yarn |
| Diameter & evenness | Optical yarn diameter; U%, CV% and SD |
| Surface analysis | Yarn hairiness and filament anomalies |
| Periodic analysis | Spectrogram and periodic error evaluation |
| Software & output | External PC software; PDF reports and CSV export |
Method references
- ASTM D5647-07(2025) — Photo-electric yarn hairiness guide
- ISO 139:2005 + Amd 1:2011 — Conditioning and test atmosphere
- ASTM D2258/D2258M-16(2022) — Yarn sampling practice
Evenness statistics are calculated from optical diameter data.
