Main assembly
- Water jacket, inner bucket and peripheral stirrer
- Temperature probes and measurement electronics
- Oxygen bomb, crucible and ignition assembly
- Touchscreen control and PC reporting configuration

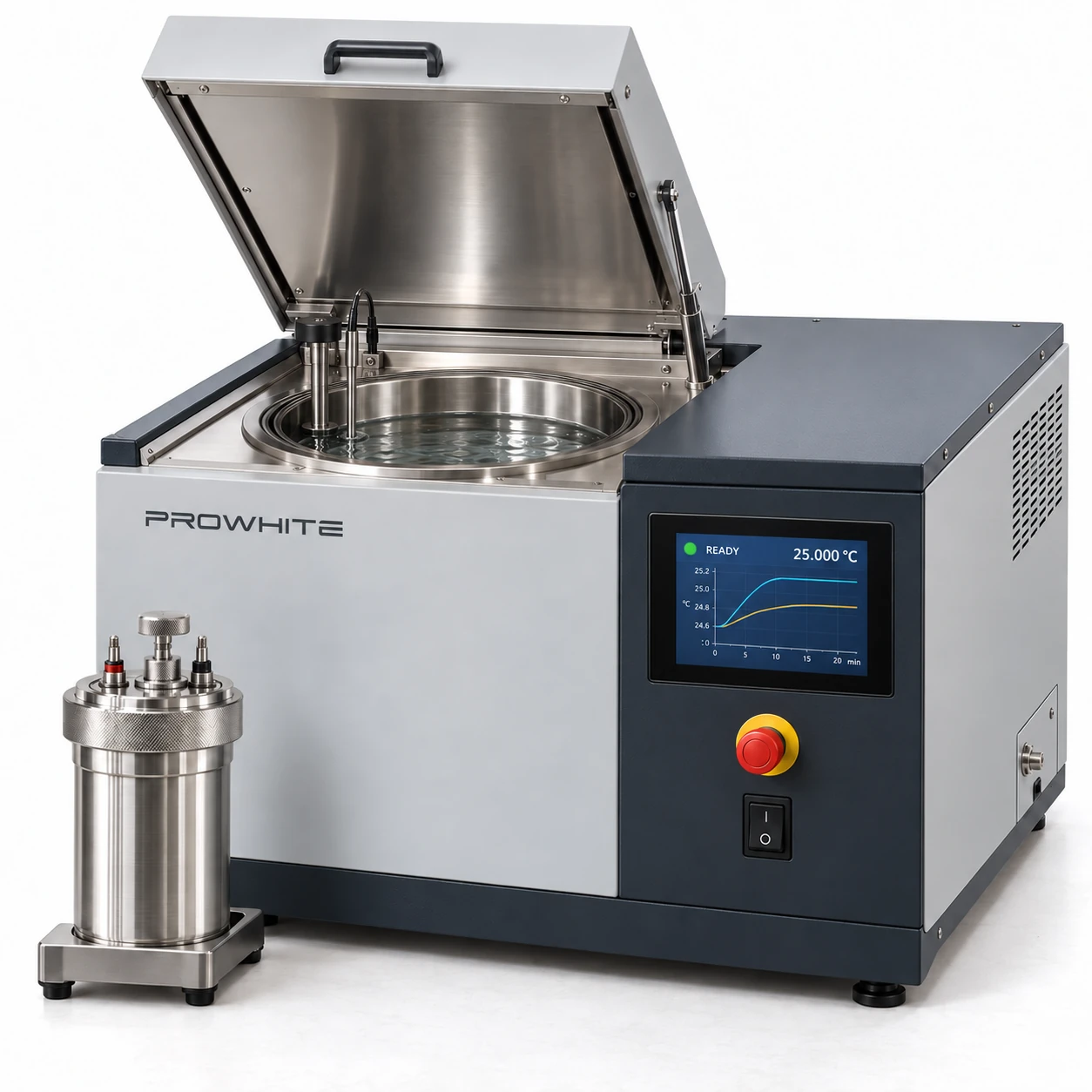

PROWHITE · PW-OBC-01
REACTION TO FIREOxygen Bomb Calorimeter
A system designed to determine the gross heat of combustion of solid materials by constant-volume oxygen bomb calorimetry.
Method reference: EN ISO 1716:2018
PCSGross heat of combustion · MJ/kgO₂Constant-volume combustion atmosphere7″Touchscreen PLC/HMI
FROM SPECIMEN TO RESULT
Test sequence

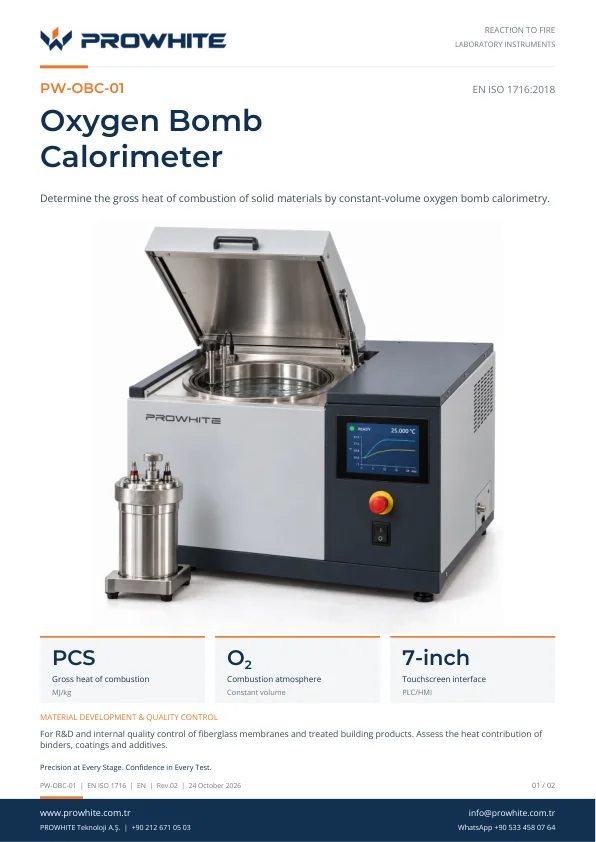

Sequence outlined in the brochure for EN ISO 1716:2018.
- Weigh & prepare
Record sample mass; prepare the crucible and ignition assembly.
- Charge & load
Fill the closed bomb with oxygen externally, then place it in the water bucket.
- Ignite & record
Ignite electrically and record the stirred bucket water temperature rise.
- Calculate PCS
Apply calibration and method corrections; verify complete combustion.
TECHNICAL SPECIFICATIONS
Technical data
| Model | PW-OBC-01 |
|---|---|
| Method reference | EN ISO 1716:2018 — gross heat of combustion |
| Measurement principle | Combustion in oxygen at constant volume |
| Thermal arrangement | Isoperibol: constant jacket temperature; bucket temperature rises |
| Reported quantity | Gross heat of combustion, PCS, in MJ/kg |
| Temperature measurement | Separate precision measurement of bucket and jacket temperatures |
| Combustion vessel | Sealed oxygen bomb with crucible and electrical ignition |
| Operator interface | 7-inch touchscreen PLC/HMI; PC-based result analysis |
| Specimen handling | Manual bomb loading; separate external oxygen filling station |
| Calibration basis | Certified benzoic acid; configuration-specific energy equivalent |
The bomb is immersed in the bucket during testing. Low-energy samples require method-specific preparation, combustion aids and corrections.
Configuration & supporting equipment
Accessories & services
- External thermostatic bath, circulator and cooler
- Oxygen filling station and suitable pressure regulator
- Analytical balance and certified benzoic acid
- Sample preparation kit, combustion aids and spares
Accessories and services are specified in the quotation.
MATERIAL DEVELOPMENT & QUALITY CONTROL
Applications
R&D and internal quality control of fiberglass membranes and treated building products. Assessment of the heat contribution of binders, coatings and additives.
